Molecular Weight and Molecular Weight Distribution
The polymerization process, whether proceeding by chain growth or by step-growth, is ruled by random events. The result is a mixture of polymers that vary in chain length. A polymeric material, therefore, cannot be characterized by a single molecular weight like an ordinary substance. Instead, a statistical average calculated from the molecular weight distribution has to be used.

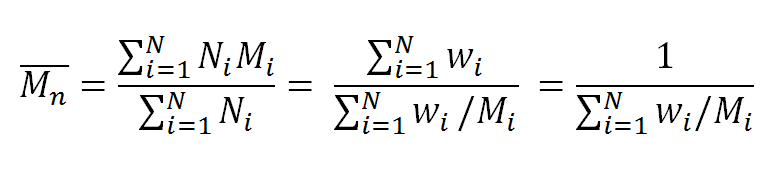

The average can be expressed in two ways. One way is to calculate the number average, which is the sum of all molecular weights divided by their total number3:
where N is the total number of molecules, Ni the number of molecules having a molecular weight Mi, and wi is the weight fraction of all molecules having a molecular weight Mi.

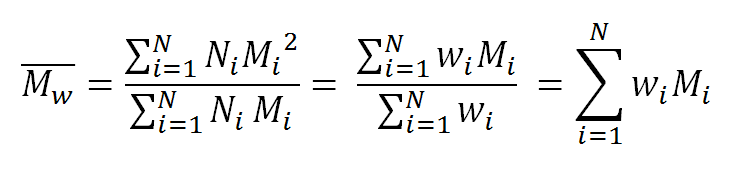

Another way to express the average molecular weight is to calculate the weight average, which is the sum of all molecular weights multiplied by their weight fractions:

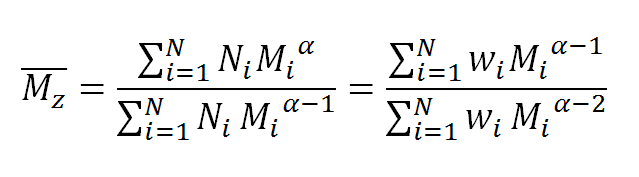

The two expressions for the average molecular weight are special cases of the general expression for weight averages:
The parameter α is the so-called weighting factor, which defines the particular average. The higher averages, which are often called z-averages, are more sensitive to high molecular weight portions and are more difficult to measure accurately. They are related to methods that measure the motion of polymer molecules, such as diffusion or sedimentation methods.
It can be shown that the weight average molecular weight is a good measure for the expected statistical size of the polymer, whereas the number average molecular weight is a measure for the chain length. The two averages can lead to very different molecular weight averages. The weight average is particularly sensitive to the presence of higher molecular weight molecules whereas the number average is very sensitive to the presence of lower molecular weight molecules. For example, if equal parts by weight of molecules with a molecular weight of 10,000 and 100,000 g/mol are mixed then the weight average molecular weight is 55,000 g/mol whereas the number average is only 18182 g/mol. If, on the other hand, equal numbers of both molecules are mixed then the weight average is 91818 g/mol and the number average 55,000 g/mol. For all polydisperse synthetic polymers with bell-shaped distribution of molecular weight we find
Mn < Mw < Mz < Mz+1
The ratio Mw / Mn is called the polydispersity index. It is a measure for the broadness of a molecular weight distribution of a polymer, that is, the larger the polydispersity index, the broader the molecular weight distribution.
The average molecular weight is related to the viscosity of the polymer under specific conditions. In the case of solution viscosity, the weight dependence of the viscosity can be described by the well-known empirical Mark-Houwink (1940) relation:
[η] = Kη Mηα
where [η] is the intrinsic viscosity, and α, Kη are the Mark-Houwink parameters. These two quantities have been measured for many polymers.

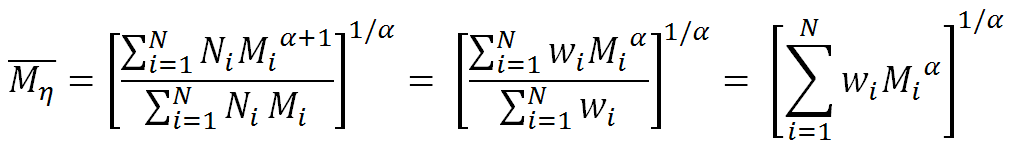

Measurements of the viscosity yields the viscosity average molar weight:
The viscosity average is usually larger than the mass average but smaller than the number average, Mn < Mη < Mw. Two very common techniques for measuring the molecular mass of polymers are high-pressure liquid chromatography (HPLC), also known as size exclusion chromatography (SEC), and gel permeation chromatography (GPC). These techniques are based on forcing a polymer solution through a matrix of cross-linked polymer particles at high pressure of up to several hundred bars.
The molecular weight, dispersity and branching has a significant effect on the mechanical and physical bulk properties of polymers. In general, a higher molecular weight improves the mechanical properties, that is, break, yield, and impact strength increase. However, a higher molecular weight also increases the melt and glass transition temperature as well as the solution and melt viscosity which makes processing and forming of the polymeric material more difficult.
The dispersity has the opposite effect; a wider molecular weight distribution lowers the tensile and impact strength but increases the yield strength, or in other words, a lower dispersity (narrower distribution) leads to better mechanical properties. The low-molecular weight portion of the distribution has a similar effect as a plasticizer, that is, it reduces the brittleness and lowers the melt viscosity which improves the processability, whereas the high-molecular weight portion causes processing diffculties because of its huge contribution to the melt viscosity.
Branching is another important performance parameter. In general, branching lowers the mechanical properties. For example, it decreases the break and yield strength. The effect on toughness is less clear; if the length of the branches exceed the entanglement weight it improves the toughness, otherwise it lowers the impact strength. Branching also lowers the brittleness, the melt temperature, the melt and solution viscosity and increases the solubility. In conclusion, the processability improves with increasing degree of branching.
- Paul J. Flory, Principles of Polymer Chemistry, 1st Edition 1953 Cornell University

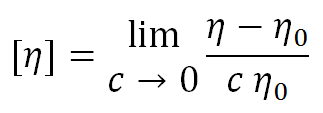

The intrinsic viscosity is defined by
where c is the concentration of the solute and η0 the viscosity of the solvent.
The number average molecular weight divided by the molecular mass of a repeat unit is known as the number average degree of polymerization, whereas the weight average divided by the molecular weight yields the weight average degree of polymerization.
